[Dxspider-support] Poorly defined connections?

Sun Nov 10 00:06:44 GMT 2024

Rudy, not sure if this is helpful, but in the techdoc folder of a dxspider
install there is a protocol doc that has information.

Link to that file on the github repo...
https://github.com/latchdevel/DXspider/blob/mojo/techdoc/protocol.pod

73,
Chris, WI3W

On Sat, Nov 9, 2024 at 5:04 PM Rudy Bakalov via Dxspider-support <
dxspider-support at tobit.co.uk> wrote:

> Frankly I am getting sick and tired of the black box approach to CCC.
> Sure, it is easy to setup, but there is a lot more to running a node than

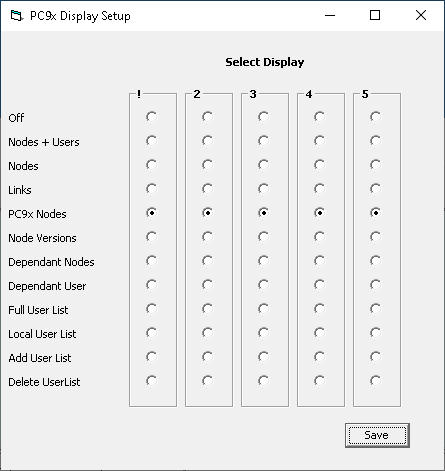

> the initial setup. There isn't anything I can do to enable or disable PC92.
> There is a menu to show the traffic (I assume), but as far as I can tell it
> does absolutely nothing:
>
> [image: Inline image]
>

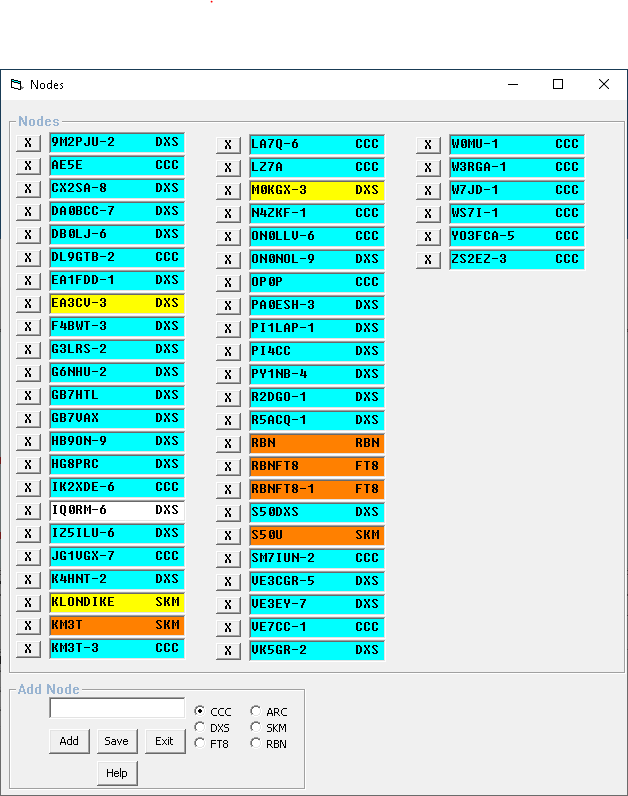

> And then I wonder why I have this problem only with a few nodes. The rest
> of the partner nodes, both DXS and CCC, seem to be OK:
>
> [image: Inline image]
>
>
> So it's puzzling and frustrating not knowing what's happening and how to
> fix.
>
> Rudy N2WQ
>
> On Saturday, November 9, 2024 at 03:29:30 PM EST, Kin EA3CV <
> ea3cv at cronux.net> wrote:
>
>
> I don't know where the documentation can be found, I have done reverse
> engineering and I have read almost all the messages published here.
>
> From what I see, the link between our nodes may not have been initialized
> to use pc9x. I think almost all CCCs don't use it, and I think it's due to
> configuration, because nodes like Lee's have it activated and I receive
> pc9x from him, and I reciprocate by doing the same. It would be necessary
> to capture an initialization of the link to see if it is correct, but in
> what you have gone through there is no problem in the format or content of
> the sentences.
> You would activate pc9x, it will not harm you and you will have
> information about who is a node or user.
>
> Possibly Lee can know the cause of what is happening.
>
> Kin EA3CV
>
>
>
> ------------------------------
> *De:* Rudy Bakalov <r_bakalov at yahoo.com>
> *Enviado:* sábado, noviembre 9, 2024 8:43:39 p. m.
> *Para:* 'The DXSpider Support list' <dxspider-support at tobit.co.uk>; Kin
> EA3CV <ea3cv at cronux.net>
> *Asunto:* Re: [Dxspider-support] Poorly defined connections?
>
> Where is the documentation that describes the protocol? I have been unable
> to locate it.
>
> Here's what I am seeing on my end:
>
>      EA3CV-3 -> 24 PC17^S52NY^S50CLX^H15^
>
>      EA3CV-3 -> 24 PC16^RW3XA-8^RA3WII - 1^H15^
>
>      EA3CV-3 -> 24 PC17^SV2HNC^EA6VQ-1^H15^
>
>      EA3CV-3 -> 24 PC16^EA4URE-2^EA4CZ - 1^EA4IAJ - 1^H15^
>
>      EA3CV-3 -> 24 PC17^K4BSZ^GB7DXG-1^H15^
>
>      EA3CV-3 -> 24 PC41^KB9AIT-6^1^GARY HOEHNE^H25^~
>
>      EA3CV-3 -> 24 PC41^KB9AIT-6^2^NEENAH^H26^~
>
>      EA3CV-3 -> 24 PC19^1^IZ2LSC-99^0^5457^H15^
>
>      EA3CV-3 -> 24 PC61^28094.0^CE6CGX^09-Nov-2024^1940Z^
> ^N9MSG^AI9T^140.17787.3^H95^~
>
>      EA3CV-3 -> 24 PC50^EA3CV-2^15^H99^
>
>      EA3CV-3 -> 24 PC61^14240.0^NB9QV^09-Nov-2024^1940Z^USS Cobia Vet Say
> ses^AJ4BH^VE7CC-1^24.213.122.245^H98^~
>
>      EA3CV-3 -> 24
> PC61^1828.4^IZ3NVR^09-Nov-2024^1940Z^ok/om^LY7M^VE7CC-1^83.188.75.252^H98^~
>
>      EA3CV-3 -> 24 PC19^1^IZ3MEZ-8^0^5457^H15^
>
> Rudy N2WQ
>
> On Saturday, November 9, 2024 at 02:39:09 PM EST, Kin EA3CV <
> ea3cv at cronux.net> wrote:
>
>
> Rudy, but have you analyzed the PC92 sentences you receive from those
> nodes? Do they reach 5 or 7, or with another value? If you don't get 5 or
> 7, you have to determine which couple you are getting.
> For my part, I've analyzed everything I send from EA3CV-3, and how it is
> received in one of its pairs, and I do not see anything incorrect in the
> PC92 A, D, C or K.
>
> Kin EA3CV
>
>
>
> ------------------------------
> *De:* Rudy Bakalov <r_bakalov at yahoo.com>
> *Enviado:* sábado, noviembre 9, 2024 6:48:34 p. m.
> *Para:* 'The DXSpider Support list' <dxspider-support at tobit.co.uk>
> *CC:* Kin <ea3cv at cronux.net>
> *Asunto:* Re: [Dxspider-support] Poorly defined connections?
>
> I have an almost perpetual problem with EA3CV-3 (DXS), M0KGX-3 (DXS), and
> DL9GTB-2 (CCC) that most of the time appear to my cluster N2WQ-1 as users,
> not nodes. I have defined them as nodes, but the setting does not apply 99%
> of the time. N2WQ-1 runs CC Cluster.
>
> Rudy N2WQ
>
> On Saturday, November 9, 2024 at 04:17:20 AM EST, Kin via Dxspider-support
> <dxspider-support at tobit.co.uk> wrote:
>
>
> Hi,
>
> I think I have detected some problems in the information exchanged between
> nodes. Possibly as a consequence of an error in the definition of the
> neighbour/peer node.
>
> SM7GVF-6 has possibly wrongly defined callsign DL9GTB-1, it should be
> DL9GTB-2.
> W9TY-1 has possibly wrongly defined callsign K4HNT-1, should be K4HNT-2
> IW1QLH-6 has possibly poorly defined callsign NX9G-6, should be NX9G
> EI7SDX possibly has ill-defined callsign ON4KST, should be ON4KST-2
> ON5MM-2 has possibly ill-defined callsign VK5GR, should be VK5GR-2
>
>
> The following, I have doubts because I have not been able to trace them:
>
> IW0QNL
>
> 1731140467^(chan) <- I HB9VQQ-2 PC92^PY1NB-4^30067^D^^5IW0QNL^H97^
> 1731115367^(chan) <- I HB9VQQ-2 PC92^PY1NB-4^4967^C^7IW0QNL:5000^H97^
>
> KM3T-5
>
> 1731111449^(chan) <- I HB9VQQ-2 PC92^KM3T-10^1049^D^^5KM3T-5^H96^
> 1731112399^(chan) <- I HB9VQQ-2 PC92^KM3T-10^1999^C^7KM3T-5:5000^H96^
>
> Sysops would be well advised to review their settings.
> In the case of DXSpider, it would be enough to look at its connection file
> at: /spider/connect/
>
> 73 de Kin EA3CV
>
>
>
> _______________________________________________
> Dxspider-support mailing list
> Dxspider-support at tobit.co.uk <Dxspider-support at tobit.couk>
> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
>
> _______________________________________________
> Dxspider-support mailing list
> Dxspider-support at tobit.co.uk
> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
