[Dxspider-support] Latest source of utter frustration
Dirk Koopman
djk at tobit.co.uk
Tue Apr 14 20:43:04 CEST 2020
Here is a case for using the mojo branch. AFAIK there is no programmed
in 1024 file limit and it won't use normal select (unless you forget to
install EV) so FD_SIZE isn't relevant. You might well still have to
increase the maximum number of files available to a process. On my
syslem ' ulimit -n 2048' works. But it depends on the hard limits set by
the operating system. In Mike's case I think the hard limit is 4096.
You'll need to modify the start up for cluster.pl to do the ulimit -n. A
standard place is in /user/default/dxspider, or you could start the node
with 'ulimit -n 2048; /spider/perl/cluster.pl > /dev/null >2&1'. YMMV.
Mike is the *only* person I know that seems to be able to run a real
300+ user node on the "standard" master branch. Everybody else
approaching that (that I know about) is on the mojo branch. If one is
serious about running "super nodes" then the mojo branch is the way to
go because it uses the Mojolicious framewark + EV + epoll(2) under the hood.
Dirk G1TLH
On 14/04/2020 17:10, Joaquin . via Dxspider-support wrote:
> Hi,
>
> I have mounted 3 VM:
> The first with version 1.55 0.204.
> With 4 GB of RAM 1 CPU
> Ubuntu 18.04.3 LTS
> The second with version 1.57 148.
> With 4 GB of RAM 1 CPU
> Debian GNU/Linux 10
> The third was the host from which the telnet requests were made.
> With 4 GB of RAM 1 CPU
> Debian GNU/Linux 10
>
> With the sysctl command I have increased the values of the variables
> net.core
> and net.ipv4 to give more capacity to the OS, on the 3 machines.
>
> None of the tests has exceeded 1008 established client sockets.
>
> root at ea3cv_cluster:~# lsof -i tcp
> ...
> ...
> perl 8872 sysop 1020u IPv4 190250 0t0 TCP
> ea3cv_cluster:7300->192.168.1.34:49984 <http://192.168.1.34:49984>
> (ESTABLISHED)
> perl 8872 sysop 1021u IPv4 190251 0t0 TCP
> ea3cv_cluster:7300->192.168.1.34:49982 <http://192.168.1.34:49982>
> (ESTABLISHED)
> perl 8872 sysop 1022u IPv4 190252 0t0 TCP
> ea3cv_cluster:7300->192.168.1.34:49980 <http://192.168.1.34:49980>
> (ESTABLISHED)
> perl 8872 sysop *1023u* IPv4 190253 0t0 TCP
> ea3cv_cluster:7300->192.168.1.34:49978 <http://192.168.1.34:49978>
> (ESTABLISHED)
>
> root at ea3cv_cluster:~# ss -s
> Total: 2511 (kernel 4418)
> TCP: 1017 (estab *1008*, closed 0, orphaned 0, synrecv 0, timewait
> 0/0), ports 0
>
> Transport Total IP IPv6
> * 4418 - -
> RAW 0 0 0
> UDP 3 3 0
> TCP 1017 1017 0
> INET 1020 1020 0
> FRAG 0 0 0
>
> sysop at ea3cv-cluster3:~/spider/kin$ ulimit -n
> *5000*
>
>
> It has noticed a higher speed when going from 2 GB to 4 GB of RAM, but
> nothing more.
> The swap memory is not occupied.
>
> sysop at ea3cv-cluster3:~/spider/kin$ uptime
> 11:32:29 up 2:04, 1 user, load average: 1,11, 0,50, 0,18
>
> Users: *1008 *<--- 1007 external sockets + 1 console.pl
> <http://console.pl>
> Uptime: 0 00:58
> Load: 14.5 % <--- Only cluster.pl <http://cluster.pl> &
> console.pl <http://console.pl>
> Mem: 73.7 %
>
> sysop at ea3cv-cluster3:~/spider/kin$ free
> total used free shared buff/cache
> available
> Mem: 4015844 1448060 158784 20520 2409000
> 2271352
> Swap: 2097148 *268 *2246880
>
>
> When the socket limit was reached, if requests kept coming to the server,
> the console.pl <http://console.pl> would crash and all sockets would
> be lost.
>
> I have found a possible cause for this limitation: *FD_SETSIZE*
>
> FD_SETSIZE is normally 1024, so file descriptors over 1024 are not
> supported in general.
> You can fiddle with the FD_SETSIZE include sizes as you have done but
> making changes
> like this might impact other programs too which aim to be POSIX compliant.
> ...
> /usr/include/x86_64-linux-gnu/bits/typesizes.h:#define __FD_SETSIZE 1024
> /usr/include/linux/posix_types.h:#define __FD_SETSIZE 1024
> ...
>
> https://access.redhat.com/solutions/488623
>
> After many tests I confirm that more than 1024 sockets cannot be
> established with this configuration.
> So far the tests, let's see what the others say.
>
> Kin, EA3CV
>
> El mar., 14 abr. 2020 a las 11:47, Dirk Koopman via Dxspider-support
> (<dxspider-support at tobit.co.uk <mailto:dxspider-support at tobit.co.uk>>)
> escribió:
>
> Firstly
>
> SIGXCPU
> The SIGXCPU signal is sent to a process when it has used up the
> CPU for a duration that exceeds a certain predetermined
> user-settable value.[16] The arrival of a SIGXCPU signal provides
> the receiving process a chance to quickly save any intermediate
> results and to exit gracefully, before it is terminated by the
> operating system using the SIGKILL signal.
>
> [16] refers to the information on getrlimit and setrlimit. Reading
> the manual says:
>
> RLIMIT_CPU
> This is the maximum amount of CPU time, in seconds, used by a
> process. If this limit is exceeded, SIGXCPU shall be generated for
> the process. If the process is catching or ignoring SIGXCPU, or
> all threads belonging to that process are blocking SIGXCPU, the
> behavior is unspecified.
>
> This parameter can be altered. But I am wondering whether you are
> hitting the limits of the vCPU that is set in the machine running
> this VM?
>
> Also there is a default limit on the number of sockets a process
> may have of 1024. Now, in the old days (and on Windows boxes with
> default limits of 64 (!)), it would just refuse to accept new
> ones. It (now) *may* be that this causes this signal. In any case
> you should increase the maximum no of sockets the process will
> take. Do a "ulimit -n" and you see the default is still 1024. You
> will need to increase the limit.
>
> You should probably also consider this StackOverflow answer:
> https://stackoverflow.com/questions/410616/increasing-the-maximum-number-of-tcp-ip-connections-in-linux
>
> Dirk
>
>
> On 14/04/2020 01:29, Michael Carper, Ph.D. via Dxspider-support wrote:
>> As of a bit more than a week ago, at about the same time each day
>> (with max users connected), the node abruptly restarts. This is
>> totally frustrating.
>>

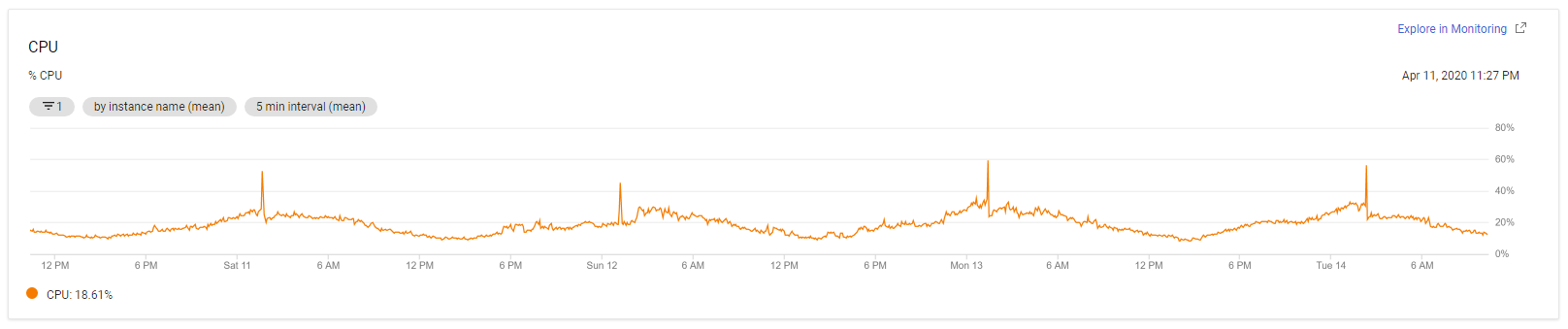

>> image.png
>> I've checked all the crontabs... no events scheduled for that time.
>>
>> I look in the linux logfile and see this...
>>
>> # cat messages
>> Apr 12 15:21:58 wa9pie-2b init: dxspider main process (28416)
>> terminated with status 24
>> Apr 12 15:21:58 wa9pie-2b init: dxspider main process ended,
>> respawning
>> Apr 13 16:14:45 wa9pie-2b init: dxspider main process (18493)
>> terminated with status 24
>> Apr 13 16:14:45 wa9pie-2b init: dxspider main process ended,
>> respawning
>>
>> What gives??
>>
>> From what I can see, "status 24" is "stop issued from terminal."
>>
>> Frustrated.
>>
>> Mike, WA9PIE, VK4EIE
>>
>> _______________________________________________
>> Dxspider-support mailing list
>> Dxspider-support at tobit.co.uk <mailto:Dxspider-support at tobit.co.uk>
>> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
>
> _______________________________________________
> Dxspider-support mailing list
> Dxspider-support at tobit.co.uk <mailto:Dxspider-support at tobit.co.uk>
> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
>
> _______________________________________________
> Dxspider-support mailing list
> Dxspider-support at tobit.co.uk
> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
