[Dxspider-support] Latest source of utter frustration
Joaquin .
joaquin at cronux.net
Tue Apr 14 18:10:55 CEST 2020
Hi,
I have mounted 3 VM:
The first with version 1.55 0.204.
With 4 GB of RAM 1 CPU
Ubuntu 18.04.3 LTS
The second with version 1.57 148.
With 4 GB of RAM 1 CPU
Debian GNU/Linux 10
The third was the host from which the telnet requests were made.
With 4 GB of RAM 1 CPU
Debian GNU/Linux 10
With the sysctl command I have increased the values of the variables
net.core
and net.ipv4 to give more capacity to the OS, on the 3 machines.
None of the tests has exceeded 1008 established client sockets.
root at ea3cv_cluster:~# lsof -i tcp
...
...
perl 8872 sysop 1020u IPv4 190250 0t0 TCP
ea3cv_cluster:7300->192.168.1.34:49984 (ESTABLISHED)
perl 8872 sysop 1021u IPv4 190251 0t0 TCP
ea3cv_cluster:7300->192.168.1.34:49982 (ESTABLISHED)
perl 8872 sysop 1022u IPv4 190252 0t0 TCP
ea3cv_cluster:7300->192.168.1.34:49980 (ESTABLISHED)
perl 8872 sysop *1023u* IPv4 190253 0t0 TCP
ea3cv_cluster:7300->192.168.1.34:49978 (ESTABLISHED)
root at ea3cv_cluster:~# ss -s
Total: 2511 (kernel 4418)
TCP: 1017 (estab *1008*, closed 0, orphaned 0, synrecv 0, timewait 0/0),
ports 0
Transport Total IP IPv6
* 4418 - -
RAW 0 0 0
UDP 3 3 0
TCP 1017 1017 0
INET 1020 1020 0
FRAG 0 0 0
sysop at ea3cv-cluster3:~/spider/kin$ ulimit -n
*5000*
It has noticed a higher speed when going from 2 GB to 4 GB of RAM, but
nothing more.
The swap memory is not occupied.
sysop at ea3cv-cluster3:~/spider/kin$ uptime
11:32:29 up 2:04, 1 user, load average: 1,11, 0,50, 0,18
Users: *1008 *<--- 1007 external sockets + 1 console.pl
Uptime: 0 00:58
Load: 14.5 % <--- Only cluster.pl & console.pl
Mem: 73.7 %
sysop at ea3cv-cluster3:~/spider/kin$ free
total used free shared buff/cache
available
Mem: 4015844 1448060 158784 20520 2409000
2271352
Swap: 2097148 *268 *2246880
When the socket limit was reached, if requests kept coming to the server,
the console.pl would crash and all sockets would be lost.
I have found a possible cause for this limitation: *FD_SETSIZE*
FD_SETSIZE is normally 1024, so file descriptors over 1024 are not
supported in general.
You can fiddle with the FD_SETSIZE include sizes as you have done but
making changes
like this might impact other programs too which aim to be POSIX compliant.
...
/usr/include/x86_64-linux-gnu/bits/typesizes.h:#define __FD_SETSIZE 1024
/usr/include/linux/posix_types.h:#define __FD_SETSIZE 1024
...
https://access.redhat.com/solutions/488623
After many tests I confirm that more than 1024 sockets cannot be
established with this configuration.
So far the tests, let's see what the others say.
Kin, EA3CV
El mar., 14 abr. 2020 a las 11:47, Dirk Koopman via Dxspider-support (<
dxspider-support at tobit.co.uk>) escribió:
> Firstly
>
> SIGXCPU
> The SIGXCPU signal is sent to a process when it has used up the CPU for a
> duration that exceeds a certain predetermined user-settable value.[16] The
> arrival of a SIGXCPU signal provides the receiving process a chance to
> quickly save any intermediate results and to exit gracefully, before it is
> terminated by the operating system using the SIGKILL signal.
>
> [16] refers to the information on getrlimit and setrlimit. Reading the
> manual says:
>
> RLIMIT_CPU
> This is the maximum amount of CPU time, in seconds, used by a process. If
> this limit is exceeded, SIGXCPU shall be generated for the process. If the
> process is catching or ignoring SIGXCPU, or all threads belonging to that
> process are blocking SIGXCPU, the behavior is unspecified.
>
> This parameter can be altered. But I am wondering whether you are hitting
> the limits of the vCPU that is set in the machine running this VM?
>
> Also there is a default limit on the number of sockets a process may have
> of 1024. Now, in the old days (and on Windows boxes with default limits of
> 64 (!)), it would just refuse to accept new ones. It (now) *may* be that
> this causes this signal. In any case you should increase the maximum no of
> sockets the process will take. Do a "ulimit -n" and you see the default is
> still 1024. You will need to increase the limit.
>
> You should probably also consider this StackOverflow answer:
> https://stackoverflow.com/questions/410616/increasing-the-maximum-number-of-tcp-ip-connections-in-linux
>
> Dirk
>
>
> On 14/04/2020 01:29, Michael Carper, Ph.D. via Dxspider-support wrote:
>
> As of a bit more than a week ago, at about the same time each day (with
> max users connected), the node abruptly restarts. This is totally
> frustrating.
>

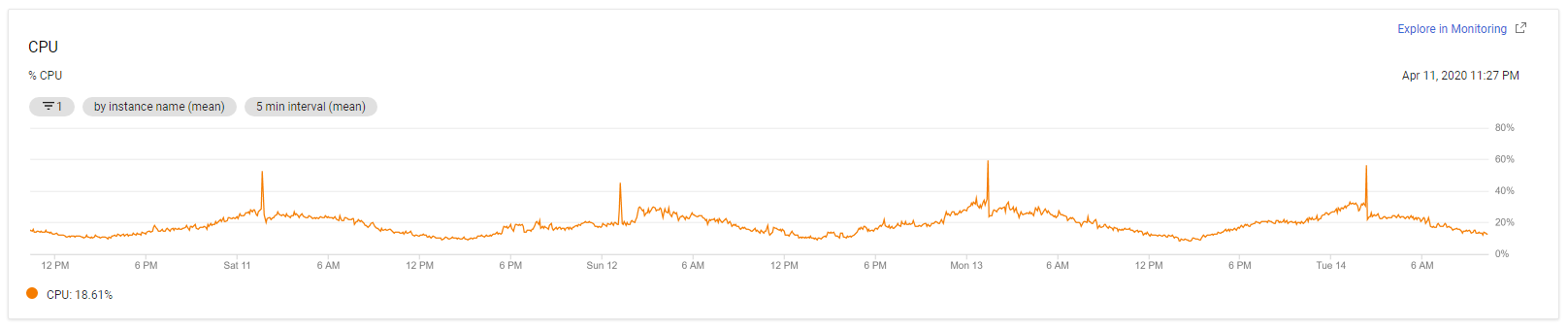

> [image: image.png]
> I've checked all the crontabs... no events scheduled for that time.
>
> I look in the linux logfile and see this...
>
> # cat messages
> Apr 12 15:21:58 wa9pie-2b init: dxspider main process (28416) terminated
> with status 24
> Apr 12 15:21:58 wa9pie-2b init: dxspider main process ended, respawning
> Apr 13 16:14:45 wa9pie-2b init: dxspider main process (18493) terminated
> with status 24
> Apr 13 16:14:45 wa9pie-2b init: dxspider main process ended, respawning
>
> What gives??
>
> From what I can see, "status 24" is "stop issued from terminal."
>
> Frustrated.
>
> Mike, WA9PIE, VK4EIE
>
> _______________________________________________
> Dxspider-support mailing listDxspider-support at tobit.co.ukhttps://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
>
>
> _______________________________________________
> Dxspider-support mailing list
> Dxspider-support at tobit.co.uk
> https://mailman.tobit.co.uk/mailman/listinfo/dxspider-support
>
